Short radius elbows vs long radius elbows: which is the right fit for your pipeline?
When it comes to pipe fittings, elbows are an important component that helps to change the direction of the flow of fluids in pipelines. However, not all elbows are created equal – there are two types of elbows commonly used in piping systems: short radius elbows and long radius elbows. In this article, we will introduce the differences between these two types of elbows and their respective applications.
90 degree Short Radius Alloy 800 Seamless elbows
Short radius elbows, as the name suggests, have a shorter radius than long radius elbows. Specifically, the radius of a short radius elbow is equal to the diameter of the pipe it is attached to. This means that short radius elbows have a tighter turn than long radius elbows. They are typically used in compact areas where space is limited, such as in piping systems in shipbuilding and offshore platforms.

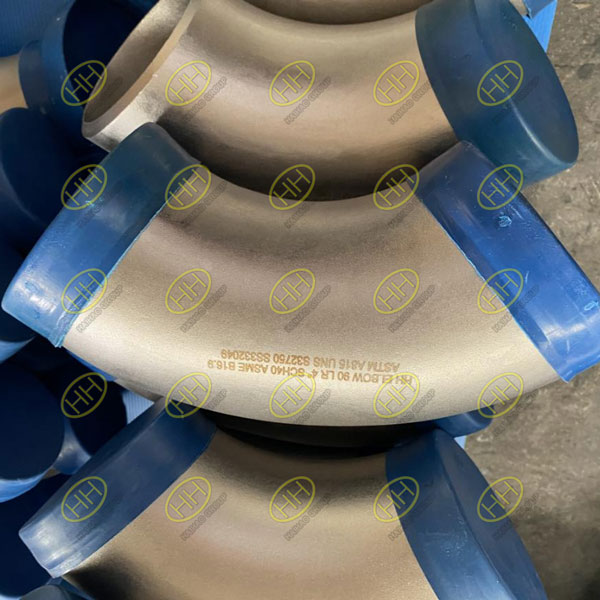

UNS 32750 90 Degree LR Elbows
On the other hand, long radius elbows have a larger radius than short radius elbows. The radius of a long radius elbow is generally 1.5 times the diameter of the pipe it is attached to. This means that long radius elbows have a gentler turn than short radius elbows. They are typically used in applications where the fluid needs to flow smoothly, such as in the chemical, pharmaceutical, and food processing industries.
It is important to note that the difference in radius between short radius and long radius elbows affects more than just the turning radius. The different radius sizes also result in different fluid flow characteristics, pressure drop, and turbulence levels. Therefore, it is crucial to select the right type of elbow for the specific application in order to ensure optimal performance and efficiency.
At Haihao Group, we offer a wide range of pipe fittings, including short radius elbows and long radius elbows, made from a variety of materials such as carbon steel, stainless steel, and alloy steel. While both short and long radius elbows can be manufactured according to ANSI/ASME B16.9, EN/DIN standard and so on.We also provide custom-made pipe fittings to meet the specific needs of our customers. Our experienced engineers and technicians can provide expert advice on selecting the right type of elbow for your application, and our production and quality control processes ensure that our products meet the highest standards. Contact us today to learn more about our pipe fittings and services.
