The introduction of EN10216-1 steel pipe standard
EN10216-1 is the European Union standard for seamless steel pipes. Applications EN10216-1 seamless steel pipe is mainly used for boiler water pipe, smoke pipe, superheater pipe, air preheating pipe, etc. It is also utilized to produce pipeline, equipment, pipe fittings, container and so on.

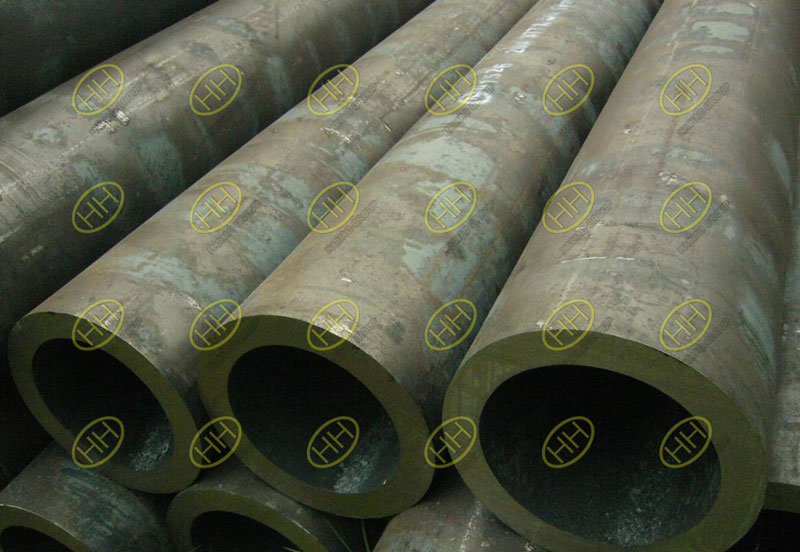

EN10216 seamless steel pipes
Mechanical properties of EN10216-1 steel pipe:
| Standard | Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation (%) |
|
EN 10216-1 |
P195 | 320-440 | ≥ 195 | ≥ 27 |
| P235 | 360-500 | ≥ 235 | ≥ 25 | |
| P265 | 410-570 | ≥ 265 | ≥ 21 |
Chemical component of EN10216-1 steel pipe:
| Standard | Grade | C | Si | Mn | P | S | Cr | Mo | Cu | Ni | V |
|
EN 10216-1 |
P195 | ≤0.13 | ≤0.35 | ≤0.70 | ≤0.025 | ≤0.020 | ≤0.30 | ≤0.06 | ≤0.30 | ≤0.30 | / |
| P235 | ≤0.16 | ≤0.35 | ≤1.20 | ≤0.025 | ≤0.020 | ≤0.30 | ≤0.06 | ≤0.30 | ≤0.30 | / | |
| P265 | ≤0.20 | ≤0.40 | ≤1.40 | ≤0.025 | ≤0.020 | ≤0.30 | ≤0.06 | ≤0.30 | ≤0.30 | / |
The size range of EN10216-1 seamless steel pipe produced by our company:
Outside diameter: 16 mm to 273 mm; Wall thickness: 2 mm to 28 mm; Maximum length: 14,000 mm.
As for EN10216-1 seamless steel pipe, our company mainly use a variety of materials to manufacture, such as P195R1, P195R2, P235R1, P235R2, P265R1, P265R2, etc.
