The pipe end types of steel pipe and pipe fittings

Pipe end means the end types of steel pipes or steel pipe fittings,it decides the connection method of a steel pipe in a plumping or industry piping system. There are mainly four types of the pipe ends in Hebei Haihao Group:Plain end (PE),Beveled end (BE),Threaded end (TE),Grooved End.

It’s very important to choose a suitable pipe end type when design the piping system.Various pipe ends are used for different application and condition.

Plain end

The most common pipe end we have seen is plain end,it could be use for welding joint or flexible connection.Plain end is a pipe with a 90 degree perpendicular to the running direction,it’s means no any special finish on the pipe.

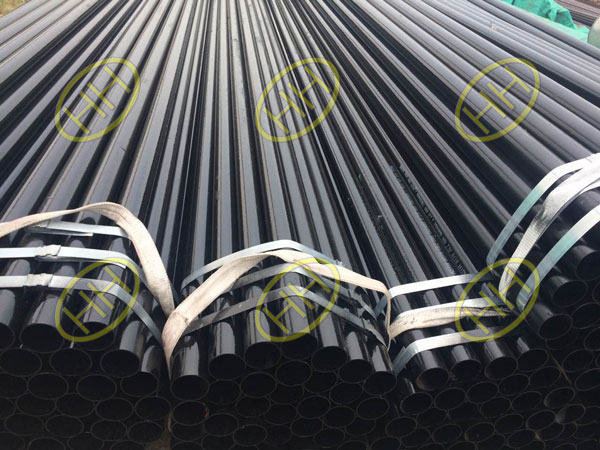

ASTM-A179-Carbon-Steel-Pipe-With-Plain-End

In the welding joint, a plain end pipe could be used not only for butt welding, but also the socket welding or welding with a slip on flange.in the flexible connection, two plain end pipes connected with a flange adaptor, and sealing by the rubber ring in the adaptor.

Bevel end

Different with the plain end, a bevel end means the end is not perpendicular to the pipe or pipe fitting surface.In regular international standards,the angle of a bevel end is 37.5°.

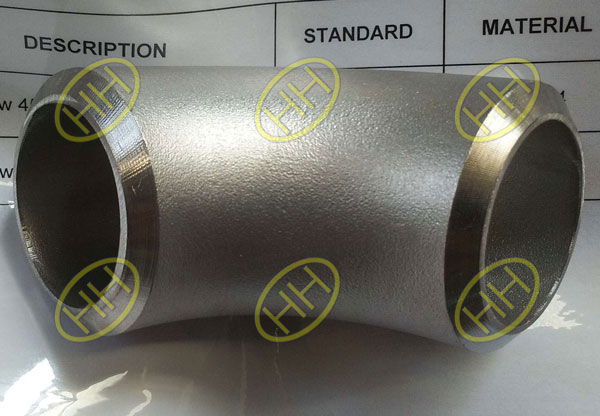

DIN-2605-Stainless-Steel-90-Degree-Elbow-With-Bevel-End

The beveled pipe ends are used for butt welding joints, the bevel angle will bring a lean gap between two pipes or fittings and help the welding connection sufficiently.

Threaded end

Threaded end commonly be used for small diameter pipes.A threaded connection includes a male thread and a female thread and commonly is used between a pipe and a fitting.

NPT-SCHXS-A234-WPB-ANSI-B1611-Swage-Nipple-With-Threaded-End

Threaded pipes and fittings can easily be assembled without welding or other permanent attachment.

Grooved end

The grooved pipe end means there is a processed groove on the end of a pipe or fitting. The grooved pipes or fittings are joint by victaulic couplings or other grooved,mechanical pipe fittings.

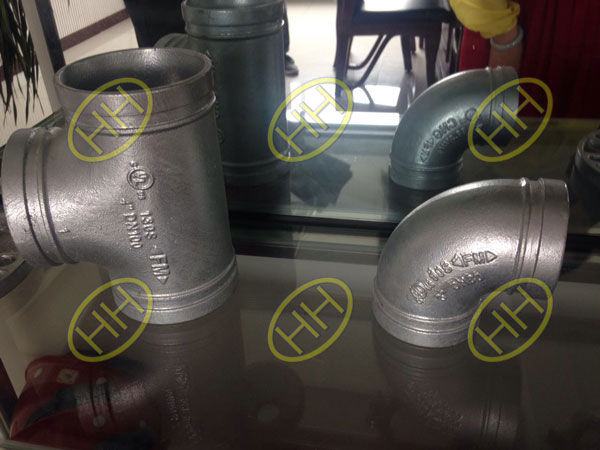

The-Elbow-and-Tee-With-Grooved-End

The groove connection is easily to assemble and disassemble,and used widely in HVACR and firefighting field piping systems.

Hebei haihao group piping solutions can supply the steel pipes and pipe fittings with different ends as per your design request.If you are interested in our products,contact us now!!!
