A comprehensive guide to the API 5L GR.B ERW pipes

The API 5L GR.B ERW pipes are widely used material in the oil and gas industry. This pipe specification is designed to meet the stringent requirements for transporting natural gas, oil, and other fluids in both onshore and offshore applications. In this article, we will explore what API 5L GR.B ERW pipe is, its manufacturing process, applications, and benefits.

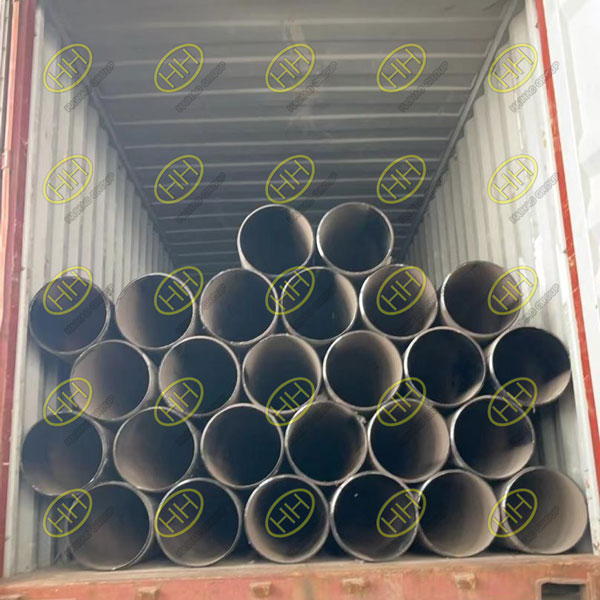

API 5L GR.B ERW pipes

API 5L GR.B ERW pipes

What is API 5L GR.B ERW pipe?

API 5L GR.B ERW pipes are integral to the infrastructure of the oil and gas industry, providing a reliable and efficient means of transporting hydrocarbons and other fluids. The combination of high-quality carbon steel and the electric resistance welding process ensures these pipes meet stringent standards for performance and safety. With their robust mechanical properties and cost-effective production, API 5L GR.B ERW pipes are a preferred choice for a wide range of industrial applications.


The American Petroleum Institute (API) 5L specification covers seamless and welded steel line pipes used for pipeline transportation systems in the petroleum and natural gas industries. API 5L is recognized globally and provides standards for various grades of steel pipes, ensuring they meet the required mechanical and chemical properties.

Grade B (GR.B):

Grade B is one of the most common grades within the API 5L specification. It denotes a specific strength level, with minimum yield strength of 35,000 psi and minimum tensile strength of 60,000 psi. GR.B pipes are known for their moderate strength and good weldability, making them suitable for many applications.

ERW (Electric Resistance Welded):

ERW refers to the manufacturing process used to produce the pipe. In the ERW process, steel strips are welded longitudinally to form the pipe. The edges of the steel strip are heated using electrical resistance and then welded together under pressure to form a solid seam. This method is efficient and cost-effective, producing pipes with a uniform wall thickness and smooth finish.

API 5L GR.B ERW pipes

API 5L GR.B ERW pipes

Manufacturing Process of API 5L GR.B ERW Pipe

The production of API 5L GR.B ERW pipes involves several key steps:

Steel Coil Preparation: High-quality steel coils are selected based on the required chemical composition and mechanical properties.

Uncoiling and Slitting: The steel coils are uncoiled and slit into strips of the desired width.

Forming: The steel strips are fed through a series of rollers to form them into a tubular shape.

Welding: The edges of the formed tube are heated using electric resistance and then pressed together to create a strong, continuous seam weld.

Sizing and Shaping: The welded pipe is passed through sizing rollers to achieve the precise diameter and roundness.

Non-Destructive Testing: The weld seam undergoes rigorous non-destructive testing (NDT) to ensure there are no defects or weaknesses.

Cutting: The pipe is cut to the required lengths.

Final Inspection: The finished pipes are inspected for compliance with API 5L standards, including dimensional checks, hydrostatic testing, and surface inspection.

Applications of API 5L GR.B ERW Pipe

API 5L GR.B ERW pipes are extensively used in various industries, including:

Oil and Gas Transmission: These pipes are ideal for transporting crude oil, natural gas, and refined products over long distances due to their strength and durability.

Water Supply Systems: They are used in municipal and industrial water supply systems.

Structural Applications: GR.B pipes are also used in construction projects for structural purposes, such as in scaffolding and piling.

Chemical Industry: The pipes are suitable for transporting chemicals and other fluids in the chemical processing industry.

Benefits of API 5L GR.B ERW Pipe

High Strength and Durability: GR.B pipes offer excellent mechanical properties, providing high strength and durability required for demanding applications.

Cost-Effective: The ERW manufacturing process is efficient, resulting in lower production costs compared to seamless pipes.

Good Weldability: The chemical composition of GR.B steel ensures good weldability, making it easier to join pipes on-site.

Consistency and Uniformity: ERW pipes have uniform wall thickness and a smooth surface finish, ensuring consistent quality and performance.

Compliance with Standards: API 5L GR.B pipes meet international standards, ensuring they are suitable for use in a wide range of applications and environments.

API 5L GR.B ERW pipe is a versatile and reliable choice for various pipeline and structural applications. Its combination of high strength, durability, and cost-effectiveness makes it a preferred material in the oil and gas industry as well as in other sectors. Understanding the specifications, manufacturing process, and benefits of API 5L GR.B ERW pipe can help industries make informed decisions when selecting materials for their projects. For more information on our range of API 5L GR.B ERW pipes and other products, please visit our website or contact our sales team.
