Introduction to the 180° A234-WP22 class 1 elbow with special radius

Haihao Group recently completed an order for a domestic client who required specialized A234 WP22 Class 1 180° elbows. These elbows are specifically engineered for high-pressure and high-temperature applications, showcasing our capability to deliver customized and high-quality piping components.

Material and Specifications

The elbows are made from A234 WP22, a material specification for wrought alloy steel pipe fittings used in high-temperature service. The “WP22” grade indicates a composition of chromium and molybdenum, which enhances the material’s strength, temperature resistance, and corrosion resistance. The addition of these alloying elements makes it ideal for use in the oil, gas, and power industries, where reliability under extreme conditions is critical.

Class 1 designates the manufacturing and testing class of the fitting, ensuring it meets strict industry standards for safety and performance.

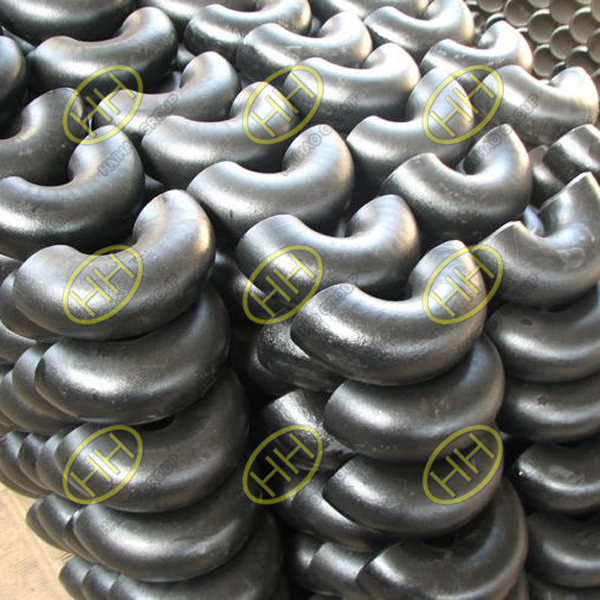

A234 WP22 Class 1 180° elbows

Special Features of the 180° Elbow

S160 Wall Thickness: The elbows come with an S160 wall thickness, providing the necessary durability for high-pressure environments.

Special Radius of 5-1/8″: Unlike standard elbows, these 180° elbows feature a special radius of 5-1/8″, designed to fit specific project requirements and ensure optimal flow and performance within the pipeline system.

High-Temperature Performance: The A234 WP22 material is capable of withstanding elevated temperatures, making it suitable for critical applications such as steam lines and other high-temperature piping systems.

Applications and Advantages

These elbows are widely used in power plants, refineries, and chemical processing facilities. Their ability to handle high pressure and temperature ensures the safe and efficient transport of fluids in demanding environments. The customized radius enhances the design flexibility, allowing the pipeline system to be configured precisely to project specifications.

Haihao Group’s expertise in manufacturing and delivering high-quality, customized piping components is exemplified in this recent order of A234 WP22 180° elbows. We are committed to meeting our clients’ exact requirements, providing components that are reliable, durable, and designed for optimal performance. If you have any specialized needs for your piping systems, Haihao Group is ready to deliver.
