Types of spectacle flanges

The spectacle blind flange(what is a spectacle flange?) is made of two pieces metal discs which are joint together by a part of steel handle.The spectacle flanges have three types in Haihao Group:

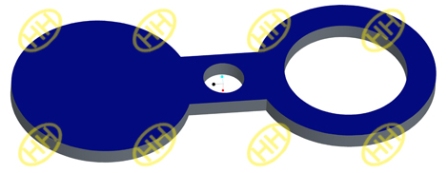

Spectacle Blind Flange Drawing

The most regular used spectacle flange type is spectacle blind flange(also call figure 8 flange).The shape of spectacle flange is like glasses. one part is a blind plate , the other part is a ring which has a same outer diameter with the first part.   The two parts are connected with a handle plate.  The spectacle blind flange could be produced from one plate, or joint together by welding from three parts: blind plate, ring and handle plate.

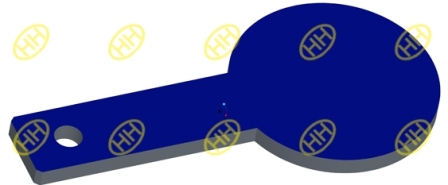

Spader Spectacle Blind Flange Drawing

The second type spectacle flange is called spade,or paddle flange.It’s a blind plate with a handle plate.It has a same usage with the blind part of a spectacle blind flange.

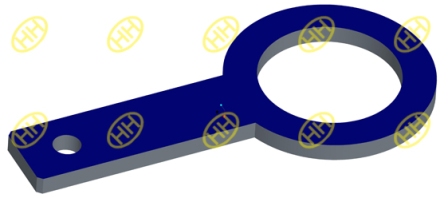

Spacer Spectacle Blind Flange Drawing

The third type spectacle flange is called spacer,it looks like a steel ring with a handle plate.The spacer has a same usage with the ring part of a spectacle flange.The spacer has a same outer diameter with the paddle flange.

Hebei haihao flange factory can produce all the three types of spectacle flange as per your requirement,and the products are in high quality.If you have any question about our products,please contact us!
