Differences between ultrasonic thickness measurement and traditional manual thickness measurement

Thickness measurement plays a critical role in ensuring the integrity and safety of various materials, especially in industries like pipeline systems, pressure vessels, and structural components. Traditionally, manual measurement methods such as calipers and micrometers were used, but technological advancements have introduced more precise and non-destructive methods, such as ultrasonic thickness measurement. In this article, we will explore the key differences between ultrasonic thickness measurement and traditional manual thickness measurement.

Traditional Manual Thickness Measurement

1.Measurement Principle

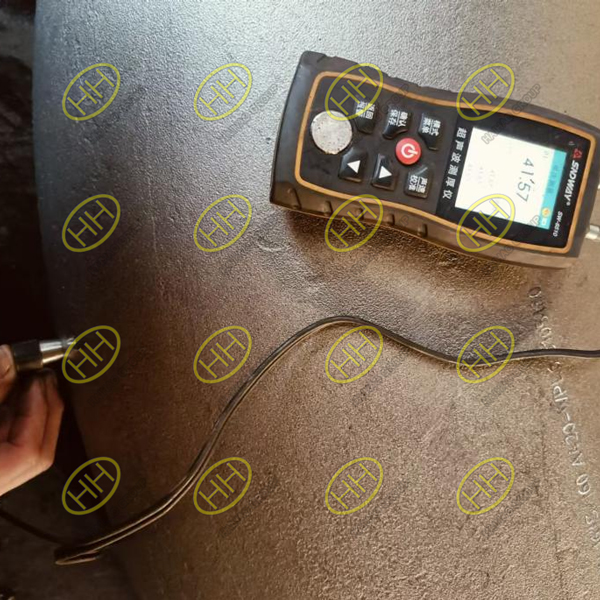

Ultrasonic Thickness Measurement: Ultrasonic testing utilizes high-frequency sound waves to measure the thickness of a material. A transducer emits ultrasonic waves into the material, which travel through the material and reflect back from the opposite side. The time it takes for the sound waves to travel through the material is measured, and using the known speed of sound in the material, the thickness is calculated. This method can accurately measure thickness without the need to access the opposite side of the material.

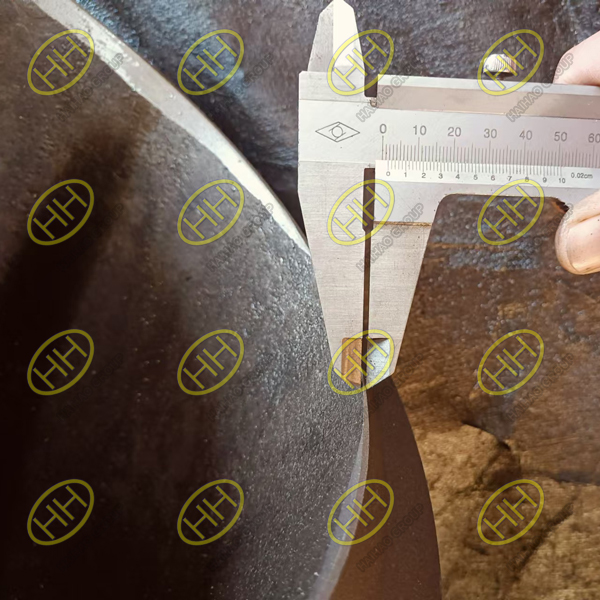

Traditional Manual Thickness Measurement: Traditional methods rely on direct mechanical measurement, where tools like calipers, micrometers, or tape measures are used to physically measure the external thickness of the material. These methods generally require manual contact and are more suited for simpler, flat, or easily accessible materials.

2.Non-Destructive vs. Destructive

Ultrasonic Thickness Measurement: One of the significant advantages of ultrasonic testing is that it is non-destructive. It can be performed on materials without causing any damage or altering the structure. This feature is especially important in industries like piping systems, where the integrity of the material must be preserved. Ultrasonic testing is also ideal for measuring the thickness of difficult-to-access areas, such as the inner walls of pipes or vessels.

Traditional Manual Thickness Measurement: In contrast, manual measurement methods can sometimes cause physical contact with the material that could lead to damage, especially on sensitive or thin-walled materials. Furthermore, manual measurement is typically done on the outer surface, which might not always reflect the actual material thickness, especially in cases of corrosion or wear.

3.Accuracy and Precision

Ultrasonic Thickness Measurement: Ultrasonic testing is known for its high precision and accuracy, often providing measurements down to a fraction of a millimeter. It is capable of detecting small variations in wall thickness, such as those caused by corrosion or material degradation, which may not be visible on the surface. The technique is highly reliable, especially for complex geometries, and can offer more consistent results.

Traditional Manual Thickness Measurement: While manual methods can be accurate, they generally offer lower precision compared to ultrasonic testing. The accuracy is often dependent on the skill and experience of the operator, as well as the quality of the measurement tools. Additionally, manual measurements are typically limited to easily accessible parts of the material, making them less effective for detecting internal flaws.

Ultrasonic Thickness Measurement

4.Applications and Versatility

Ultrasonic Thickness Measurement: Ultrasonic testing is highly versatile and can be used on a wide range of materials, including metals, plastics, and composites. It is especially useful for materials with irregular shapes, such as pipes, pressure vessels, or tanks. Ultrasonic testing can also measure materials of varying thicknesses, from thin-walled structures to heavy-duty industrial components, making it suitable for a broad spectrum of industries, including oil and gas, construction, and aerospace.

Traditional Manual Thickness Measurement: Traditional thickness measurement methods are best suited for simple, flat surfaces or uniformly shaped materials. These tools are limited in their ability to measure complex shapes or hard-to-reach areas. While they are effective for certain applications, they are not ideal for high-precision or large-scale measurements in industrial environments.
