Common connection methods for pipe caps and pipes

Pipe caps, essential components in pipeline systems, are used to seal or protect the ends of pipes. Besides threaded connections, several other methods are employed to connect pipe caps to pipes, depending on the material, pressure, temperature, and application requirements. Below is an overview of the common connection methods.

ASME B16.9 A234 WPB SCH80 pipe caps package

1.Welded Connection

Welding is one of the most widely used methods for connecting pipe caps, especially in steel pipeline systems. Welded pipe caps typically consist of two parts: the pipe cap body and a welding ring. During installation, the welding ring is first placed over the pipe end. It is then welded to the pipe using high heat, and the cap body is secured to the welding ring.

2.Clamp Connection

Clamp connections are a simple and efficient way to secure pipe caps to pipes. This method uses two clamps and a gasket. During installation, the clamps are positioned over the pipe end, the gasket is placed between the clamp and the pipe, and the pipe cap is tightened into place.

3.Flange Connection

Flange connections are commonly used in large pipeline systems, such as those for pumps, fans, or pressure vessels. This method involves a pair of flanges, bolts, nuts, and a gasket. The flanges are aligned with the pipe ends and secured with bolts and nuts, with a gasket between the flange faces to ensure sealing.

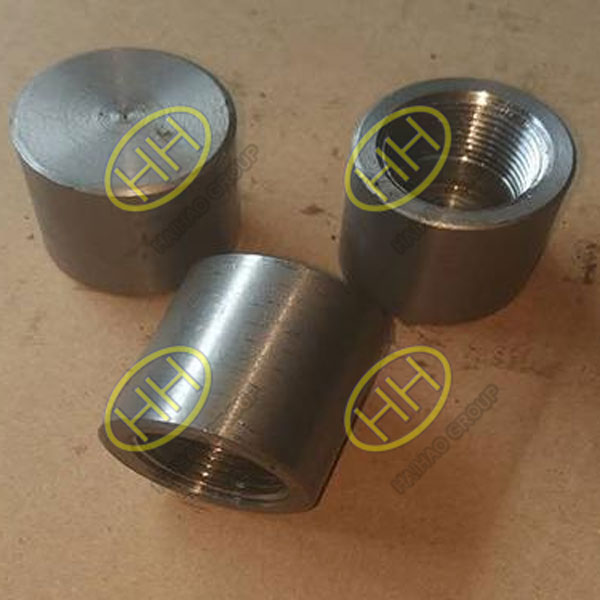

ASME B16.11 ASTM A105 threaded caps

4.Other Connection Methods

Several alternative methods are also used for connecting pipe caps, depending on specific requirements:

Compression Connection: Uses clamps or compression fittings to secure the cap to the pipe.

Press Connection: The pipe cap is mechanically pressed onto the pipe, forming a strong connection.

Push-Fit Connection: The cap is inserted into the pipe end and tightened with external screws for fixation.

Each of these methods has its own advantages and limitations, making them suitable for different scenarios.

The choice of connection method depends on factors such as operating pressure, temperature, material compatibility, and maintenance needs. By carefully evaluating these factors, you can select the most appropriate connection method to ensure the safety and efficiency of the pipeline system.
