EN 1092-1 PN6 plate flange
Haihao Group are a manufacturer,supplier and exporter of EN 1092-1 forged flanges.EN 1092-1 standard is a European standard for a single series of flanges specifies requirements for circular steel flanges in PN designations PN 2,5 to PN 400 and nominal sizes from DN 10 to DN 4000.Plate flange is the type 01 of EN 1092-1 flange,and used for welding.The method of manufacture of plate flange of EN 1092-1 contain forged,seamless rolled and pressed.The raw materials can be flat products(plates),bended and electirc welded form bars,sectional steel or strip and machined from rolled or forged bars and forged sectional steel.

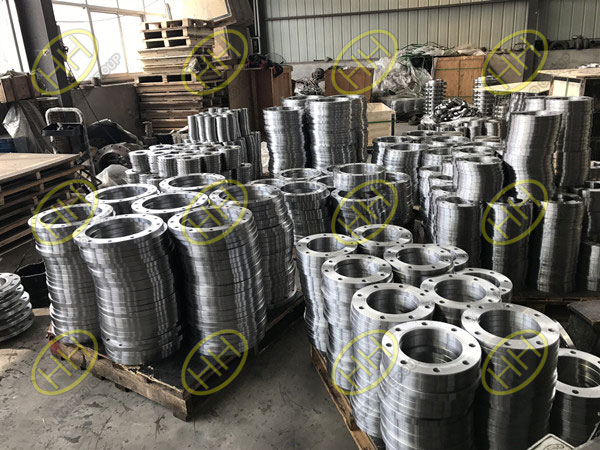

EN 1092-1 FF plate flanges
Specifications of EN 1092-1 plate flange:
Size: DN 10-DN 2000
Pressure: PN6,PN10,PN16,PN25,PN40
Applications:EN 1092-1 flanges are known to deliver exceptional performance and widely used in oil and gas pipeline,chemical industry,plumbing,heating,water supply systems,power plant,fabrication industry,shipbuilding,construction fields.
Dimensions of EN 1092-1 PN6 plate flange:

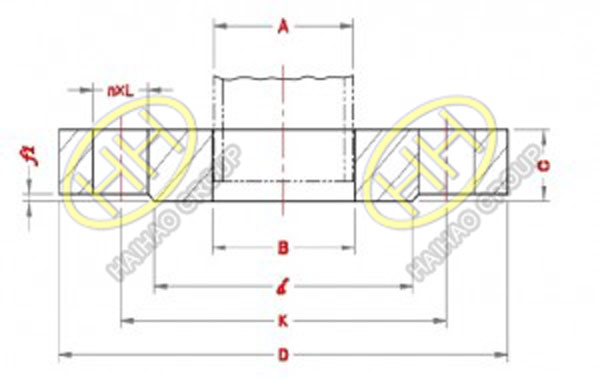

Plate Slip On Flanges Dimensions according to Standard EN 1092-1 PN6
| DN | Pipe OD, A | Outside Diamete | Diameter of Bolt circle | Diameter of Bolt Hole | Number of bolt | Size of Bolt | Flange thickness | Diameter of Raised Face | Height of Raised Face | Bore diameter,B | ||
| Series Ⅰ | Series Ⅱ | D | K | L | C | d | f1 | Series Ⅰ | Series Ⅱ | |||
| 10 | 17.2 | 14 | 75 | 50 | 11 | 4 | M10 | 12 | 35 | 2 | 18 | 15 |
| 15 | 21.3 | 18 | 80 | 55 | 11 | 4 | M10 | 12 | 40 | 2 | 22 | 19 |
| 20 | 26.9 | 25 | 90 | 65 | 11 | 4 | M10 | 14 | 50 | 2 | 27.5 | 26 |
| 25 | 33.7 | 32 | 100 | 75 | 11 | 4 | M10 | 14 | 60 | 2 | 34.5 | 33 |
| 32 | 42.4 | 38 | 120 | 90 | 14 | 4 | M12 | 16 | 70 | 2 | 43.5 | 39 |
| 40 | 48.3 | 45 | 130 | 100 | 14 | 4 | M12 | 16 | 80 | 3 | 49.5 | 46 |
| 50 | 60.3 | 57 | 140 | 110 | 14 | 4 | M12 | 16 | 90 | 3 | 61.5 | 59 |
| 65 | 76.1 | 79 | 160 | 130 | 14 | 4 | M12 | 16 | 110 | 3 | 77.5 | 78 |
| 80 | 88.9 | 89 | 190 | 150 | 18 | 4 | M16 | 18 | 128 | 3 | 90.5 | 91 |
| 100 | 114.3 | 108 | 210 | 170 | 18 | 4 | M16 | 18 | 148 | 3 | 116 | 110 |
| 125 | 139.7 | 133 | 240 | 200 | 18 | 8 | M16 | 20 | 178 | 3 | 141.5 | 135 |
| 150 | 168.3 | 159 | 265 | 225 | 18 | 8 | M16 | 20 | 202 | 3 | 170.5 | 161 |
| 200 | 219.1 | 219 | 320 | 280 | 18 | 8 | M16 | 22 | 258 | 3 | 221.5 | 222 |
| 250 | 273 | 273 | 375 | 335 | 18 | 12 | M16 | 24 | 312 | 3 | 276.5 | 276 |
| 300 | 323.9 | 325 | 440 | 395 | 22 | 12 | M20 | 24 | 365 | 4 | 327.5 | 328 |
| 350 | 355.6 | 377 | 490 | 445 | 22 | 12 | M20 | 26 | 415 | 4 | 359.5 | 380 |
| 400 | 406.4 | 426 | 540 | 495 | 22 | 16 | M20 | 28 | 455 | 4 | 411 | 430 |
| 450 | 457 | 480 | 595 | 550 | 22 | 16 | M20 | 30 | 520 | 4 | 462 | 484 |
| 500 | 508 | 530 | 645 | 600 | 22 | 20 | M20 | 30 | 570 | 4 | 513.5 | 534 |
| 600 | 610 | 630 | 755 | 705 | 26 | 20 | M24 | 32 | 670 | 5 | 616.5 | 634 |
| 700 | 711 | 720 | 860 | 810 | 26 | 24 | M24 | 40 | 775 | 5 | 715 | 724 |
| 800 | 813 | 820 | 975 | 920 | 30 | 24 | M27 | 44 | 880 | 5 | 817 | 824 |
| 900 | 914 | 920 | 1075 | 1020 | 30 | 24 | M27 | 48 | 980 | 5 | 918 | 924 |
| 1000 | 1016 | 1020 | 1175 | 1120 | 30 | 28 | M27 | 52 | 1080 | 5 | 1020 | 1024 |
| 1200 | 1219 | 1220 | 1405 | 1340 | 33 | 32 | M30 | 60 | 1295 | 5 | 1223 | 1224 |
| 1400 | 1422 | 1420 | 1630 | 1560 | 36 | 36 | M33 | 72 | 1510 | 5 | 1426 | 1424 |
| 1600 | 1626 | 1620 | 1830 | 1760 | 36 | 40 | M33 | 80 | 1710 | 5 | 1630 | 1624 |
| 1800 | 1829 | 1820 | 2045 | 1970 | 39 | 44 | M36 | 88 | 1920 | 5 | 1833 | 1824 |
| 2000 | 2032 | 2020 | 2265 | 2180 | 42 | 48 | M39 | 96 | 2125 | 5 | 2036 | 2024 |
Materials of EN 1092-1 plate flange:
- Stainless steel EN 1092-1 plate flanges :
ASTM A 182 F 304,304L,304H,316,316L,316Ti,310,310S,321,321H,317,347,347H, 904L - Duplex & Super Duplex Steel EN 1092-1 plate flanges:
ASTM/ASME A/SA 182 F44, F45,F51, F53, F55, F60, F61 - Carbon Steel EN 1092-1 Flanges :
ASTM/ASME A/SA 105 ASTM/ASME A 350 ,ASTM A 181 LF 2/A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706 - Low Temperature Carbon Steel EN 1092-1 Flanges:
ASTM A350, LF2, LF3 - Alloy Steel EN 1092-1 Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91 - Copper Alloy Steel EN 1092-1 Flanges :
ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200 - Nickel Alloy EN 1092-1 Flanges:
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
We supply EN 1092-1 flanges in a variety of facing,threadings,tolerances,dimensions and surface finishes.If you want to know more about our flanges and other piping products(seamless steel pipes,welded steel pipes,butt welding pipe fittings,forged pipe fittings),please email us:sales@haihaogroup.com
