ANSI/ASME B16.5 class 150 lap joint flange
Haihao Group manufacture and export ANSI/ASME B16.5 lap joint flange in various size,pressure and materials.Lap joint flange(loose flange) consists of backing flange and stud end,the stub end butt welding to the pipe,and the lap joint flange will be slip around the stub end.The lap flange is not connected with the pipe and the stub end directly,so it can be rotated,it is convenient to install the flange connection if there is some misalignment between the bolt holes.

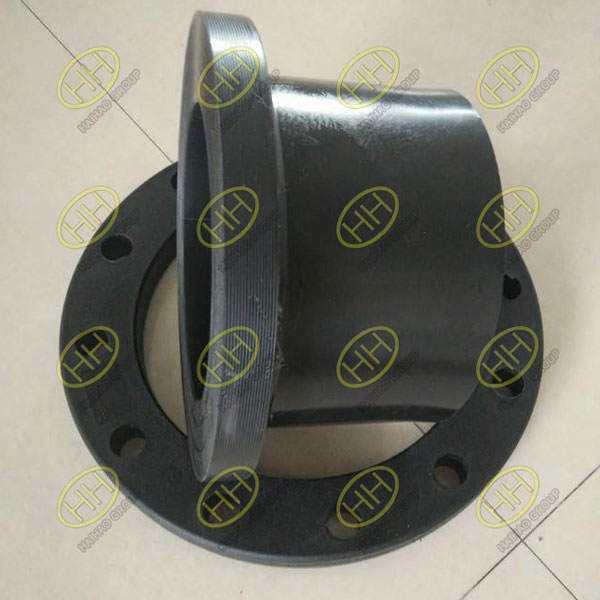

ANSI/ASME B16.5 ASTM A105 lap joint flange
Specification of ANSI/ASME B16.5 lap joint flanges:
Size: ½”-24″
Face type: Flat Face (FF),Raised Face (RF),Ring Type Joint (RTJ)
Pressure:
- ANSI/ASME B16.5 class 150 lap joint flange
- ANSI/ASME B16.5 class 300 lap joint flange
- ANSI/ASME B16.5 class 400 lap joint flange
- ANSI/ASME B16.5 class 600 lap joint flange
- ANSI/ASME B16.5 class 900 lap joint flange
- ANSI/ASME B16.5 class 1500 lap joint flange
- ANSI/ASME B16.5 class 2500 lap joint flange
Materials:
carbon steel: ASTM A105,A350 LF2,SS400,P235GH,P250GH,C22.8,Q235,20#,16Mn,etc.
stainless steel: ASTM A182 F304,F304L,F316,F316L,F321,F347,F310,F44,F51,etc.
alloy steel: ASTM A694 F42,F46,F52,F56,F60,F65,F70,A182 F5,F9,F91,F12,F11,F22,etc.
Applications: Our flange products are widely used in industry like oil and gas,chemical,shipbuilding,water treatment,power plant,steam,construction and other field.
Coating: black coat,yellow coat,varnish,galvanized coat,anti-rust oil,or others.

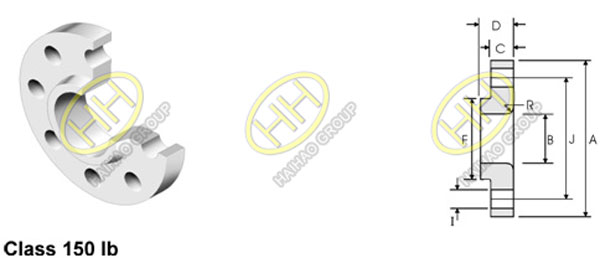

Dimensions of ANSI/ASME B16.5 class 150 lap joint flange:
ANSI ASME B16.5 Class 150 Lap Joint Flange Dimensions
| Pipe | Flange Data | Lap | Hub | Drilling Data | Weight | ||||||
| Nominal Pipe Size
|
A | B | C | D | R | F | H | I | J | ||
| Outside Diameter | Overall Diameter | Inside Diameter | Flange Thickness min | Overall Length | Lap Radius | Hub Diameter | Number of Holes | Bolt Hole Diameter | Diameter of Circle of Holes | kg/piece | |
| in mm |
in mm |
in mm |
in mm |
in mm |
in mm |
in mm |
in mm |
in mm |
|||
| ½ | 0.840 21.30 | 3.500 88.90 | 0.900 22.90 | 0.440 11.20 | 0.620 15.70 | 0.120 3.000 | 1.190 30.20 | 4 | 0.620 15.70 | 2.380 60.45 | 0.38 |
| ¾ | 1.050 26.70 | 3.880 98.60 | 1.110 28.20 | 0.500 12.70 | 0.620 15.70 | 0.120 3.000 | 1.500 38.10 | 4 | 0.620 15.70 | 2.750 69.85 | 0.55 |
| 1 | 1.315 33.40 | 4.250 108.0 | 1.380 35.10 | 0.560 14.20 | 0.690 17.50 | 0.120 3.000 | 1.940 49.30 | 4 | 0.620 15.70 | 3.120 79.25 | 0.76 |
| 1¼ | 1.660 42.20 | 4.620 117.3 | 1.720 43.70 | 0.620 15.70 | 0.810 20.60 | 0.190 4.800 | 2.310 58.70 | 4 | 0.620 15.70 | 3.500 88.90 | 1.01 |
| 1½ | 1.900 48.30 | 5.000 127.0 | 1.970 50.00 | 0.690 17.50 | 0.880 22.40 | 0.250 6.400 | 2.560 65.00 | 4 | 0.620 15.70 | 3.880 98.60 | 1.30 |
| 2 | 2.375 60.30 | 6.000 152.4 | 2.460 62.50 | 0.750 19.10 | 1.000 25.40 | 0.310 7.900 | 3.060 77.70 | 4 | 0.750 19.10 | 4.750 120.7 | 2.03 |
| 2½ | 2.875 73.00 | 7.000 177.8 | 2.970 75.40 | 0.880 22.40 | 1.120 28.40 | 0.310 7.900 | 3.560 90.40 | 4 | 0.750 19.10 | 5.500 139.7 | 3.25 |
| 3 | 3.500 88.90 | 7.500 190.5 | 3.600 91.40 | 0.940 23.90 | 1.190 30.20 | 0.380 9.700 | 4.250 108.0 | 4 | 0.750 19.10 | 6.000 152.4 | 3.81 |
| 3½ | 4.000 101.6 | 8.500 215.9 | 4.100 104.1 | 0.940 23.90 | 1.250 31.75 | 0.380 9.700 | 4.810 122.2 | 8 | 0.750 19.10 | 7.000 177.8 | 4.76 |
| 4 | 4.500 114.3 | 9.000 228.6 | 4.600 116.8 | 0.940 23.90 | 1.310 33.30 | 0.440 11.20 | 5.310 134.9 | 8 | 0.750 19.10 | 7.500 190.5 | 5.25 |
| 5 | 5.563 141.3 | 10.00 254.0 | 5.690 114.5 | 0.940 23.90 | 1.440 36.60 | 0.440 11.20 | 6.440 163.6 | 8 | 0.880 22.40 | 8.500 215.9 | 6.02 |
| 6 | 6.625 168.3 | 11.00 279.4 | 6.750 171.5 | 1.000 25.40 | 1.560 39.60 | 0.500 12.70 | 7.560 192.0 | 8 | 0.880 22.40 | 9.500 241.3 | 7.40 |
| 8 | 8.625 219.1 | 13.50 342.9 | 8.750 222.3 | 1.120 28.40 | 1.750 44.50 | 0.500 12.70 | 9.690 246.1 | 8 | 0.880 22.40 | 11.75 298.5 | 12.1 |
| 10 | 10.75 273.0 | 16.00 406.4 | 10.92 277.4 | 1.190 30.20 | 1.940 49.30 | 0.500 12.70 | 12.00 304.8 | 12 | 1.000 25.40 | 14.25 362.0 | 16.4 |
| 12 | 12.75 323.8 | 19.00 482.6 | 12.92 328.2 | 1.250 31.75 | 2.190 55.60 | 0.500 12.70 | 14.38 365.3 | 12 | 1.000 25.40 | 17.00 431.8 | 26.1 |
| 14 | 14.00 355.6 | 21.00 533.4 | 14.18 360.2 | 1.380 35.10 | 3.120 79.25 | 0.500 12.70 | 15.75 400.1 | 12 | 1.120 28.40 | 18.75 476.3 | 34.5 |
| 16 | 16.00 406.4 | 23.50 596.9 | 16.19 411.2 | 1.440 36.60 | 3.440 87.40 | 0.500 12.70 | 18.00 457.2 | 16 | 1.120 28.40 | 21.25 539.8 | 44.6 |
| 18 | 18.00 457.2 | 25.00 635.0 | 18.20 462.3 | 1.560 39.60 | 3.810 96.80 | 0.500 12.70 | 19.88 505.0 | 16 | 1.250 31.75 | 22.75 577.9 | 48.7 |
| 20 | 20.00 508.0 | 27.50 698.5 | 20.25 514.4 | 1.690 42.90 | 4.060 103.1 | 0.500 12.70 | 22.00 558.8 | 20 | 1.250 31.75 | 25.00 635.0 | 61.6 |
| 24 | 24.00 609.6 | 32.00 812.8 | 24.25 616.0 | 1.880 47.80 | 4.380 111.3 | 0.500 12.70 | 26.12 663.4 | 20 | 1.380 35.10 | 29.50 749.3 | 86.6 |
Notes: Weights are based on manufacturer’s data and are approximate.
