Prefabricated product-Stanchions

The following is a set of product drawing provided by British customers, it may be a railing for stairs. We are good at prefabricated goods, so we are very willing and professional to produce these drawing products.

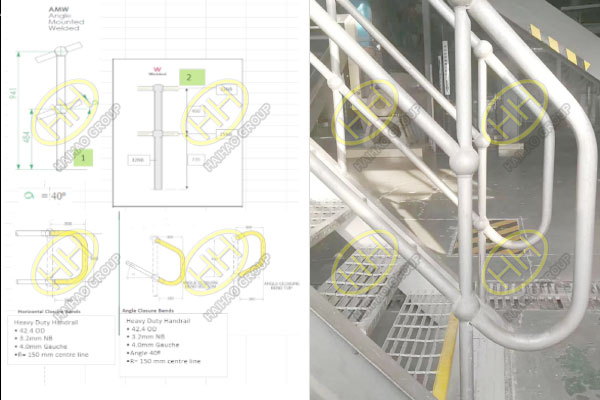

Drawing for prefabricated product Stanchions

The first is Stanchions Type AMW: BLANK TUBULAR STANCHION WITH 32NB SHANK & 75DIA BALLS AT 450MM CENTRES, DRILLED 43.5MM TO SUIT 32NB HANDRAIL, 450 CTS (NOT 457) X 700 TAIL (FOR YOU TO CUT TO SUIT), RAKED 40 DEG SELF COLOUR STICKS ONLY (NO BASE) S235JRH.

The second is Stanchions Type W: BLANK TUBULAR STANCHION WITH 32NB SHANK & 75DIA BALLS AT 450MM CENTRES, DRILLED 43.5MM TO SUIT 32NB HANDRAIL, 450 CTS (NOT 460) X 700 TAIL (FOR YOU TO CUT TO SUIT), SELF COLOUR STICKS ONLY (NO BASE) S235JRH.

There is a little difference between the size of his drawing and the description, we finally re arranged accurate drawings for customer according to the actual description. Because non-standard products can only be processed after strict review by both parties. we must be strict to avoid any inconsistency. The following is the final confirmation drawing.

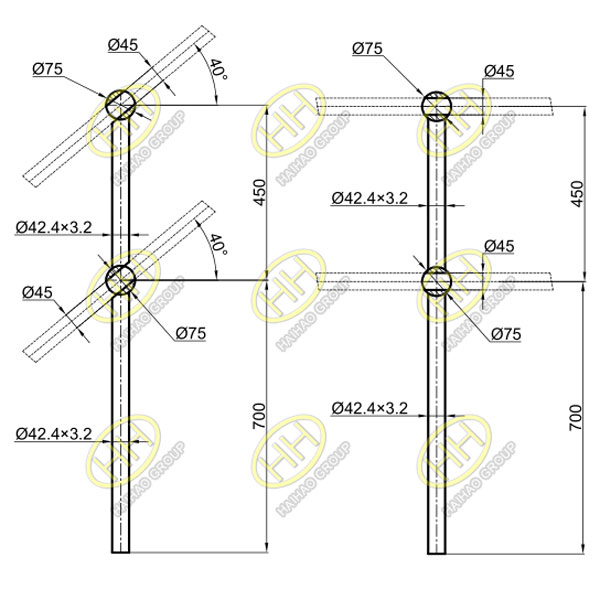

The following figure is the final drawing size we have confirmed and and the production has been carried out according to this size.

Drawing for prefabricated product Stanchions
