API 5L Gr.A PSL1 steel pipe | Hebei Haihao Group

API 5L Gr.A PSL1 steel pipe

API 5L steel pipe comes in a variety of wall thicknesses and is manufactured domestically, to order to meet our customer’s particular application requirements. We offer both seamless and welded (ERW,LSAW,SSAW) to meet the particular challenges of all transmission environments.

API 5CT PLS1 casing steel pipes

API 5CT PLS1 casing steel pipes

Diemnsion:

  • 1)SEAMLESS  OD:21.3-508mm WT:2-60mm
  • 2)HFW/ERW    OD:21.3-508mm WT:3.2-15.9mm
  • 3)LSAW   OD:406.4-1422mm WT:6.4-44.5mm
  • 4)SSAW   OD:219.1-2540mm WT:5.4-25.4mm

Steel Grade L210/A delivery codiation:Rolled,Rolled Normalizing,Normalizing or Formed Normalizing

API5L Gra Psl1 Chemical Composition:

  • C    0.22 max
  • Mn 0.90 max
  • P     0.030 max
  • S     0.030 max

API5L Gra Psl1 Mechanical Propertise:

  • Yieleds Strength ≥210Mpa(≥30500psi)
  • Tensile Strength ≥335Mpa (≥48600psi)

Test required: Acc.to API5L Tesile test, Flattening test,Bending test,Charpy test,Welding test,NDT,Ultrasonic Test,Hydrostatic test

Weight Tolerance:±10%

Tolerances for diameter and out of roundness

Tolerances for diameter and out of roundness

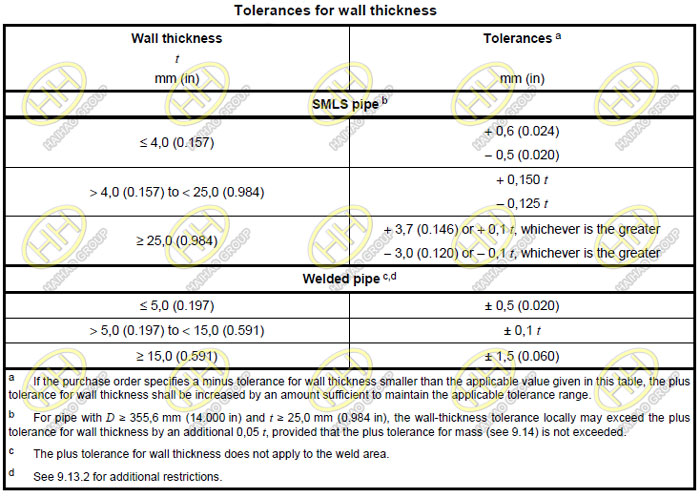

Tolerances for wall thickness

Tolerances for wall thickness

We can also produce external FBE/2PP/3PP/2PE/3PE coated, Internal Epoxy Resin Primer Lined line pipe according to DIN30670/DIN30671 standard

If you want to buy or import best high-quality API Gr.A pipeline,Gr.A PSL1 pipeline,API Gr.A PSL1 pipeline,Gr.A PSL1 pipeline,API 5L Gr.A pipeline from professional company, factory, seller, and exporter, or if you are checking API 5L Gr.A PSL1 Pipeline brands, please feel free to contact us: sales@haihaogroup.com
