ANSI/ASME B16.5 class 2500lb blind flange dimensions
ANSI/ASME B16.5 is one of the most commonly used standards for blind flanges,the nominal size of blind flange from ½” to 24″.Blind flange is used to blank off pipelines,valves and pumps,it can also be used as an inspection cover.It is sometimes referred to as a blank flange.
Specification of ANSI/ASME B16.5 blind flange:
Size: ½”-24″;
Class: 150lb,300lb,400lb,600lb,900lb,1500lb,2500lb;
Face type: Flat Face (FF),Raised Face (RF),Ring Type Joint (RTJ)
Materials of ANSI/ASME B16.5 blind flange:
carbon steel: ASTM A105,A350 LF2,SS400,P235GH,P250GH,C22.8,Q235,20#,16Mn,etc.
stainless steel: ASTM A182 F304,F304L,F316,F316L,F321,F347,F310,F44,F51,etc.
alloy steel: ASTM A694 F42,F46,F52,F56,F60,F65,F70,A182 F5,F9,F91,F12,F11,F22,etc.

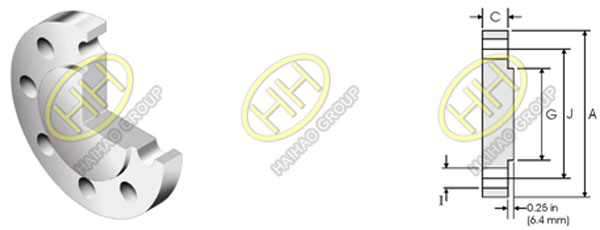

Dimensions of ANSI/ASME B16.5 class 2500lb blind flange:
Related of blind flanges:
- ANSI/ASME B16.5 class 150 blind flange
- ANSI/ASME B16.5 class 300 blind flange
- ANSI/ASME B16.5 class 400 blind flange
- ANSI/ASME B16.5 class 600 blind flange
- ANSI/ASME B16.5 class 900 blind flange
- ANSI/ASME B16.5 class 1500 blind flange
- ANSI/ASME B16.5 class 2500 blind flange
Haihao Group supply & manufacture forged flanges more than 30 years,our forged flange products contain:weld neck flange,slip on flange,blind flange,threaded flange,plate flange(plain flange),spectacle blind flange,orifice flange,socket weld flange,lap joint flange(loose flange),long weld neck flange,reducing flange,rolled forging ring flange,flange olet,tube sheet,anchor flange,non standard flange(custom flange).We produce the forged flanges in different standards,such as ANSI/ASME B16.5,ANSI/ASME B16.36,ANSI/ASME B16.47,ANSI/ASME B16.48,BS,DIN,EN 1092-1,JIS B2220,GOST,etc.If you want to know more about our forged flanges,please email us:sales@haihaogroup.com
