ANSI B16.5/ ANSI B16.47 Forged Steel Flange

ANSI STANDARD FLANGE:

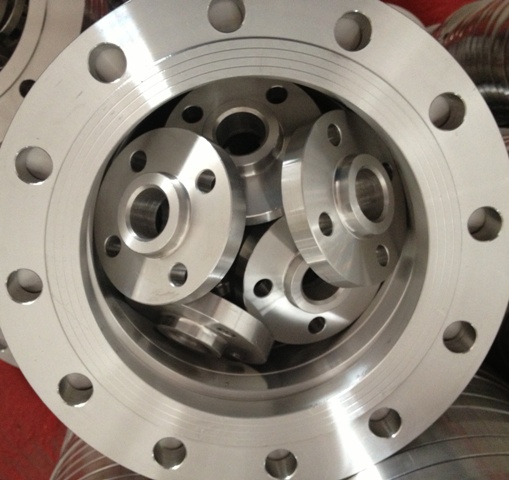

Forge-Steel-Flange-Ansi-B16-5-B16-47

Forge-Steel-Flange-Ansi-B16-5-B16-47

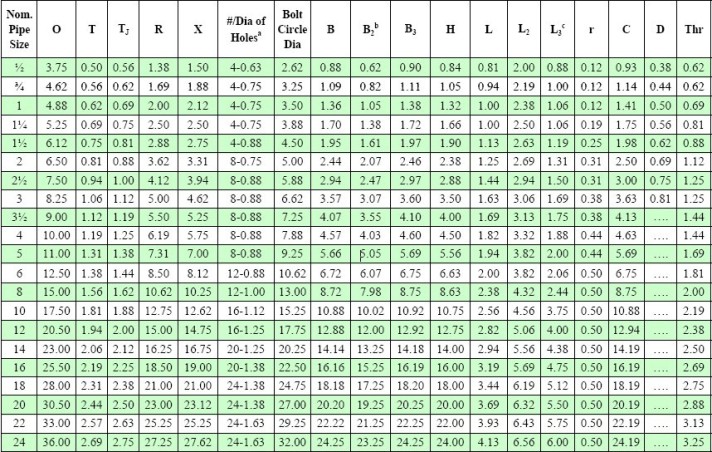

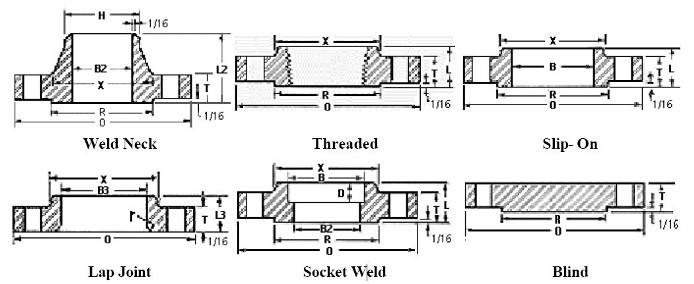

 ANSI B16.5 Class 150 Forged Flanges ANSI B16.5 Class 150 Forged Flanges ANSI B16.5 Class 300 Forged Flanges

Dimensions are in inches. (a)-Bolt hole diameter 1/8 in. larger than bolt diameter.(b)-Standard bore dimensions provided. See bolt chart for other wall thicknesses. (c)-This dimension is commonly associated with “true” lap joints. Industry standard is to make to the slip on length through the hub.

ANSI B16.5 Class 300 Forged Flanges

ANSI B16.5 Class 300 Forged Flanges

Dimensions are in inches. (a)- Bolt hole diameter 1/8 in. larger than bolt diameter. (b)- Standard bore dimensions provided. See bore chart for other wall thicknesses.(c)- This dimension is commonly associated with “true” lap joints. Industry standard is to make to the slip on length through the hub.

ANSI B16.5 Class 600 Forged Flanges

ANSI B16.5 Class 600 Forged Flanges

Dimensions are in inches. (a)- Bolt hole diameter 1/8 in. larger than bolt diameter. (b)- See bore chart for wall thicknesses. (c)- This dimension is commonly associated with “true” lap joints. Industry standard is to make to the slip on length through the hub. To be specified by Purchaser.

Hebei Haihao Group can produce the forged steel flanges as per customers’ requirements, including the ANSI/ASME B16.5 , B16.47 standard , we also can produce the flanges in other standards like the DIN, BS EN1092, GOST 12820, JIS B2220 Etc.

If you want to know more about Haihao Flanges, you can visit our flanges introduction.
