ANSI/ASME B16.5 class 600lb blind flange dimensions
ANSI/ASME B16.5 is one of the most commonly used standards for blind flanges,the nominal size of blind flange from ½” to 24″.Blind flange is used to blank off pipelines,valves and pumps,it can also be used as an inspection cover.It is sometimes referred to as a blank flange.

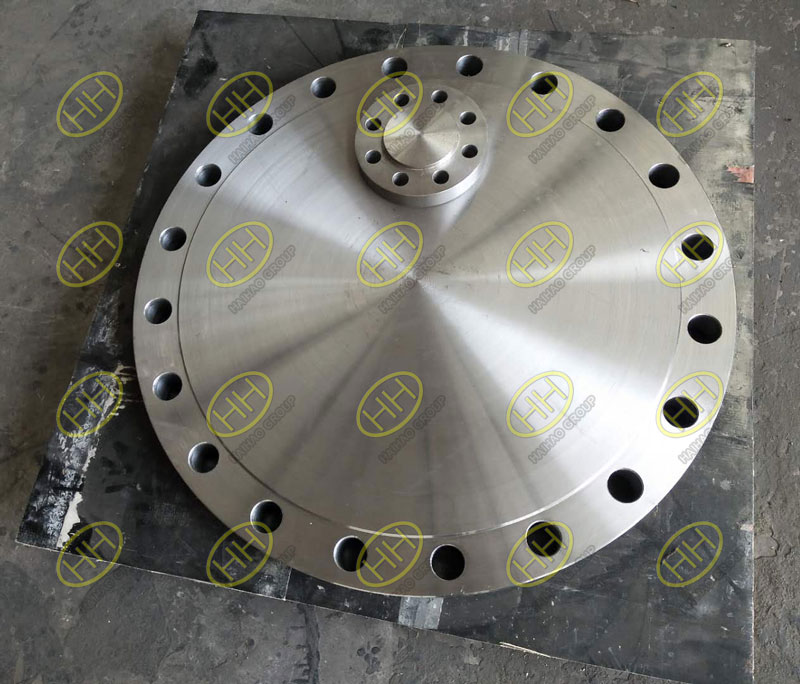

ANSI B16.5 ASTM A182 F304 blind flanges
Specification of ANSI/ASME B16.5 blind flange:
Size: ½”-24″;
Class: 150lb,300lb,400lb,600lb,900lb,1500lb,2500lb;
Face type: Flat Face (FF),Raised Face (RF),Ring Type Joint (RTJ)
Materials of ANSI/ASME B16.5 blind flange:
carbon steel: ASTM A105,A350 LF2,SS400,P235GH,P250GH,C22.8,Q235,20#,16Mn,etc.
stainless steel: ASTM A182 F304,F304L,F316,F316L,F321,F347,F310,F44,F51,etc.
alloy steel: ASTM A694 F42,F46,F52,F56,F60,F65,F70,A182 F5,F9,F91,F12,F11,F22,etc.
Dimensions of ANSI/ASME B16.5 class 600lb blind flange:

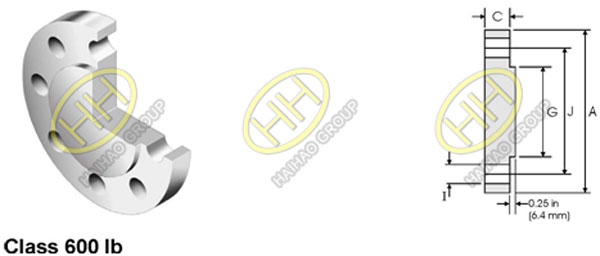

ANSI ASME B16.5 Class 600 Blind Flange Dimensions
| Nominal Pipe Size | Pipe | Flange Data | Raised Face | Drilling Data | Weight | |||
| A | C | G | H | I | J | |||
| Outside Diameter | Overall Diameter | Flange Thickness min | Face Diameter | Number of Holes | Bolt Hole Diameter | Diameter of Circle of Holes | kg/piece | |
| in mm |
in mm |
in mm |
in mm |
in mm |
in mm |
|||
| ½ | 0.840 21.30 | 3.750 95.20 | 0.560 14.20 | 1.380 35.10 | 4 | 0.620 15.70 | 2.620 66.55 | 0.76 |
| ¾ | 1.050 26.70 | 4.620 117.3 | 0.620 15.70 | 1.690 42.90 | 4 | 0.750 19.10 | 3.250 82.60 | 1.28 |
| 1 | 1.315 33.40 | 4.880 123.9 | 0.690 17.50 | 2.000 50.80 | 4 | 0.750 19.10 | 3.500 88.90 | 1.60 |
| 1¼ | 1.660 42.20 | 5.250 133.3 | 0.810 20.60 | 2.500 63.50 | 4 | 0.750 19.10 | 3.880 98.60 | 2.23 |
| 1½ | 1.900 48.30 | 6.120 155.4 | 0.880 22.30 | 2.880 73.15 | 4 | 0.880 22.40 | 4.500 114.3 | 3.25 |
| 2 | 2.375 60.30 | 6.500 165.1 | 1.000 25.40 | 3.620 91.90 | 8 | 0.750 19.10 | 5.000 127.0 | 4.15 |
| 2½ | 2.875 73.00 | 7.500 190.5 | 1.120 28.40 | 4.120 104.6 | 8 | 0.880 22.40 | 5.880 149.4 | 6.13 |
| 3 | 3.500 88.90 | 8.250 209.5 | 1.250 31.70 | 5.000 127.0 | 8 | 0.880 22.40 | 6.620 168.1 | 8.44 |
| 3½ | 4.000 101.6 | 9.000 228.6 | 1.380 35.00 | 5.500 139.7 | 8 | 1.000 25.40 | 7.250 184.2 | 11.0 |
| 4 | 4.500 114.3 | 10.75 273.1 | 1.500 38.10 | 6.190 157.2 | 8 | 1.000 25.40 | 8.500 215.9 | 17.3 |
| 5 | 5.563 141.3 | 13.00 330.2 | 1.750 44.50 | 7.310 185.7 | 8 | 1.120 28.40 | 10.50 266.7 | 29.4 |
| 6 | 6.625 168.3 | 14.00 355.6 | 1.880 47.80 | 8.500 215.9 | 12 | 1.120 28.40 | 11.50 292.1 | 36.1 |
| 8 | 8.625 219.1 | 16.50 419.1 | 2.190 55.60 | 10.62 269.7 | 12 | 1.250 31.75 | 13.75 349.3 | 58.9 |
| 10 | 10.75 273.0 | 20.00 508.0 | 2.500 63.50 | 12.75 323.9 | 16 | 1.380 35.10 | 17.00 431.8 | 97.5 |
| 12 | 12.75 323.8 | 22.00 558.8 | 2.620 66.55 | 15.00 381.0 | 20 | 1.380 35.10 | 19.25 489.0 | 124 |
| 14 | 14.00 355.6 | 23.75 603.3 | 2.750 69.85 | 16.25 412.8 | 20 | 1.500 38.10 | 20.75 527.1 | 151 |
| 16 | 16.00 406.4 | 27.00 685.8 | 3.000 76.20 | 18.50 469.9 | 20 | 1.620 41.10 | 23.75 603.3 | 214 |
| 18 | 18.00 457.2 | 29.25 743.0 | 3.250 82.60 | 21.00 533.4 | 20 | 1.750 44.50 | 25.75 654.1 | 272 |
| 20 | 20.00 508.0 | 32.00 812.8 | 3.500 88.90 | 23.00 584.2 | 24 | 1.750 44.50 | 28.50 723.9 | 349 |
| 24 | 24.00 609.6 | 37.00 939.8 | 4.000 101.6 | 27.25 692.2 | 24 | 2.000 50.80 | 33.00 838.2 | 533 |
Notes: Weights are based on manufacturer’s data and are approximate.
