Butt welding pipe tees-equal tee,reducing tee,lateral tee,barred tee
A butt welding pipe tee is one of the most used butt welding pipe fittings,it is an important part of industrial piping systems to change direction,branch off or to mechanically join equipment to the system.There are five types of butt welding tee:equal tee,reducing tee,lateral tee,barred tee,straight tee.

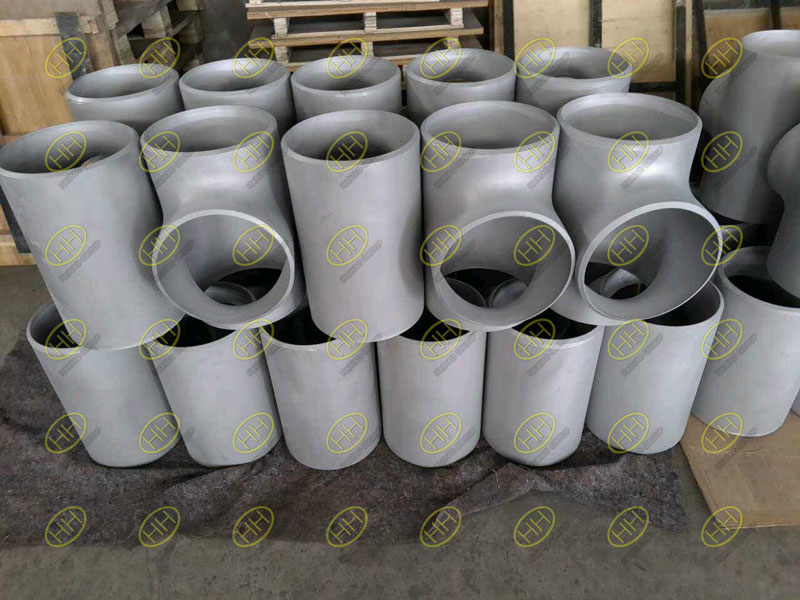

ASME B16.9 ASTM A403 WP304L equal tees
Butt welding equal tee: The branch diameter of equal tee is same with the main pipe(Run pipe)diameter,butt welding pipe tee allows a 90 degree branch off from a running pipe.This allows for connecting auxiliary equipment to a pipe.A tee is welded on both side to the pipe,leaving the branch open for branch off.

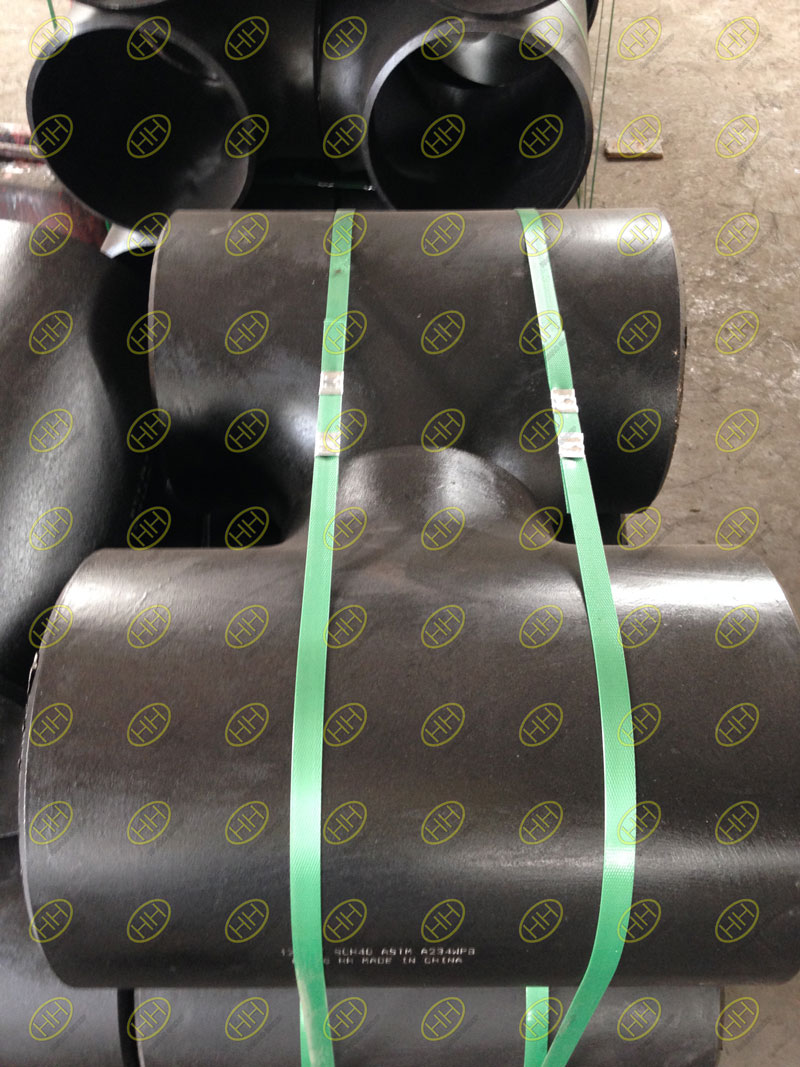

ASTM A234 WPB ANSI B16.9 reducing tees
Butt welding reducing tee: The tee branch pipe diameter is not same with the run pipe of the tee.Commonly,in a reducing tee,the branch pipe diameter is smaller than the running pipe.But there are also some project the branch pipe diameter of the tee is bigger than the run pipe,it means the branch is the inlet of the flow.

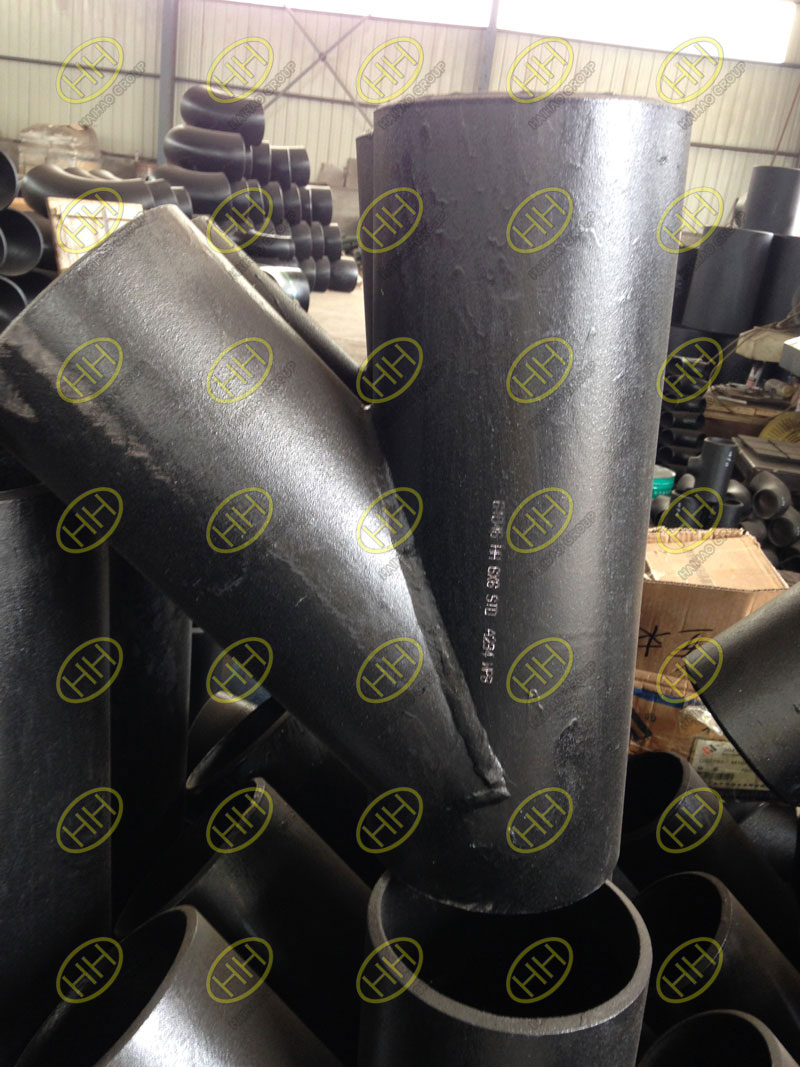

ASTM A234 WPB ANSI B16.9 lateral tees
Butt welding lateral tee: A lateral pipe tee is similar to a tee but has a side opening outlet branch at a 45 degree angle.It is a kind of steel pipe tee,but the branch direction is different with the straight tee.On the contrary to the lateral tee,the straight tee has a branch pipe direction of 90 degree to the run pipe.Lateral tee can be equal tee or reducing tee.

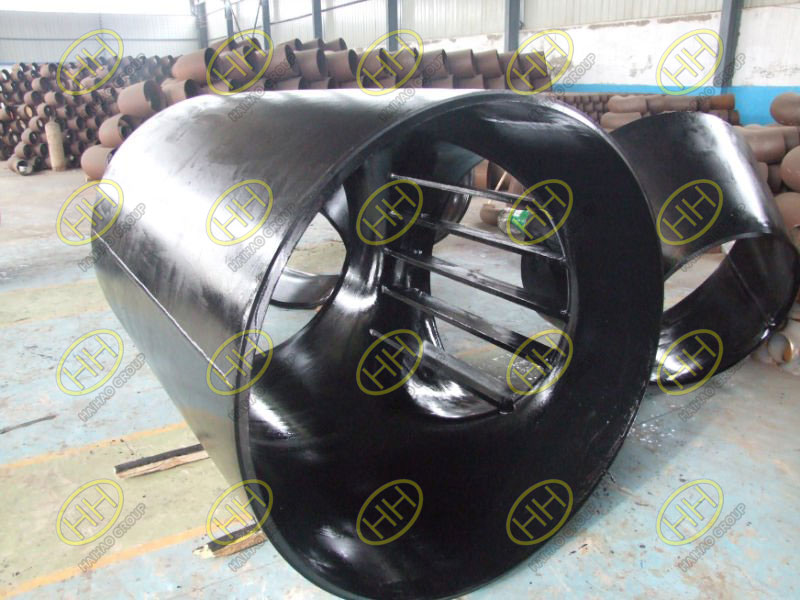

Carbon steel barred tee
Butt welding barred tee: Barred tee is a pipe fitting that is used in a pig launcher or receiver system in a piping system to ensure the pig could pass the branch safely.
Butt welding straight tee: A straight tee means a tee of pipe fitting which the branch outlet has a 90 degree direction turning from the main pipe of the tee.It can be equal tee or reducing tee.
Specifications of butt welding pipe tees:
Size: 1/2″-24″
Wall thickness: SCH10S,SCH40S,SCH80S,SCH160
Standards of butt welding pipe tees:
ANSI/ASME B16.9-Factory made wrought steel butt welding fittings,inculdes elbows,tees,reducers,caps dimensions.
DIN EN 10253-Butt welding pipe fittings,elbows,return bends,concentric and eccentric reducers,equal and reducing tees,and caps
GOST 17376-Carbon and low-alloy steel butt-welding fittings,tee
JIS B2311-Steel butt welding pipe fittings for ordinary use.
JIS B2312-Steel butt welding pipe fittings
KS B1522-Steel butt welding pipe fittings for ordinary use and Fuel Gas
KS B1541-Steel butt welding pipe fittings
MSS SP-43-Wrought stainless steel butt welding fittings
MSS SP-75-Specification for high test wrought butt welding fittings
Materials of butt welding pipe tee:
ASTM A234-This specification covers wrought carbon steel and alloy steel fittings of seamless and welded construction.
ASTM A420-Standard specification for piping fittings of wrought carbon steel and alloy steel for low-temperature service.
ASTM A403-Standard specification for wrought austenitic stainless steel piping fittings
Carbon steel: ASTM A234 WPB,ASTM A234 WPC,ASTM A420 WPL6,MSS SP-75 WPHY42,WPHY52,WPHY60, WPHY65,WPHY70,S235,S355,ST37.2,SS400,GOST CT20,etc.
Stainless steel: ASTM A403,ASTM A312,WP304,WP304L,WP316,WP316L,etc.
Alloy steel: ASTM A234 WP1,WP5,WP9,WP11,WP22,WP91,ASTM A860 WPL6,etc.
Coating: black,yellow paint,varnish,anti-rust oil,galvanized,epoxy coating or as for clients’ requirements.
Package: In wooded cases or pallets,or as for clients’ requirements.
Haihao Group manufacture all types butt welding pipe tees according to international standards or customers’ requirements.We also supply other types butt welding pipe fittings like elbows,caps,bends,coupling,reducer,nipple,outlet,etc.If you want to know more about our pipeline products,please email us:sales@haihaogroup.com
