Types of outlet pipe fittings

Outlet pipe fittings are also known as pipe branch fittings,branch connection fittings,tube base or O’lets.It provides a branch of a large-diameter pipe to a small-diameter pipe.Outlet is the reinforcing fitting mainly used branch pipe connection.

Types of outlet pipe fittings:

There are various types of outlet pipe fittings,and the mostly used outlet pipe fittings are sockolets and threadolets,weldolets and elbolets.

The weldoflange is a combination of a welding neck flange and a supposedly weldolet,while the nipoflange is a combination of  a welding neck flange and a nipolet.

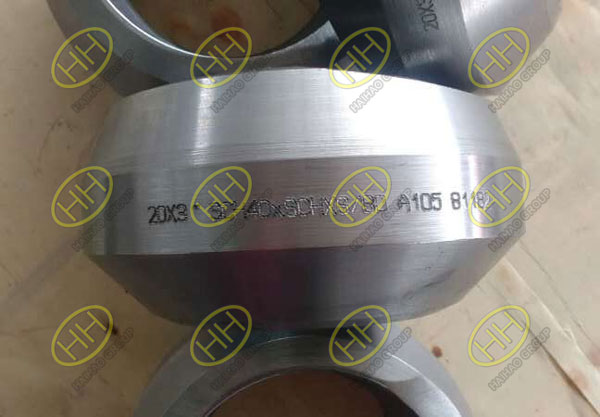

Carbon steel weldolet or welding outlet

Carbon steel weldolet or welding outlet

Weldolet(welding outlet):

Weldolet is the most common fitting of branch connection.It has a beveled end,and connected to the branch pipe by butt welding,so it belongs to butt weld fittings.The design of the weldolet minimizes stress concentration and provides overall reinforcement.There are three pressure grade STD, XS, and Sch160 for the weldolet.

ASTM A182 F304L Sockolet

ASTM A182 F304L Sockolet

Sockolet(socket weld outlet)

Sockolet,its run pipe is the same as weldolet,but its branch connection is socket-welded.The pressure is usually 3000# and 6000#.

Thredolet or thread outlet finished in Haihao Group

Thredolet or thread outlet finished in Haihao Group

Thredolet(threaded outlet)

Thredolet,its run pipe is the same as weldolet,but its branch connection is threaded without welding.The pressure is usually 3000# and 6000#.

Latrolet lateral outlet

Latrolet lateral outlet

Latrolet(lateral outlet)

Latrolet is for 45°branches,its connection with the branch pipe can be butt welding,socket welding and threaded.

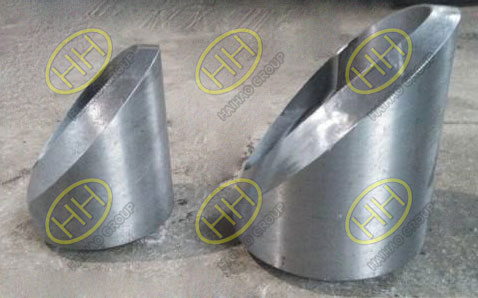

Elbolet elbow outlet

Elbolet elbow outlet

Elbolet(elbow outlet)

Elbolet is used to provide branch connections on long radius elbows or short radius elbows.Its connection with the branch pipe can be butt welding,socket welding and threaded.

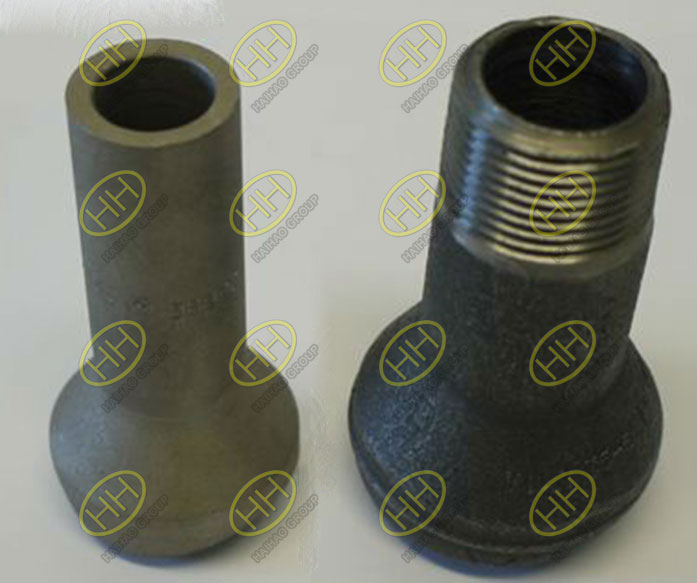

Nippolets nipple outlet

Nippolets nipple outlet

Nipolet(nipple outlet)

Nipolet usually used for valve installation and exhaust.There are two grades of thickness: XS and XXS.Its length is from 3-1/2 inches to 6-1/2 inches,and its end is socket or female thread.

Sweepolet swept outlet

Sweepolet swept outlet

Sweepolet(swept outlet)

Sweepolet,its shape is wavy and overall reinforcement.It is a butt welding connection with branch pipe,commonly used in low pressure pipelines.

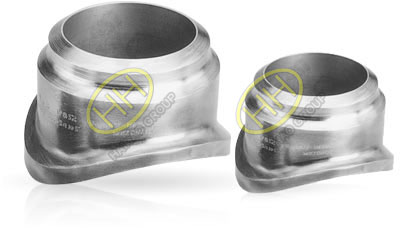

Insert weldolet or insert welding outlet

Insert weldolet or insert welding outlet

Insert weldolet(insert welding outlet)

Insert weldolet is another contoured butt-weld branch connection used in less critical applications.The ends are slanted to encourage this procedure,and in this manner the weldolet is viewed as a butt-weld fitting.Weldolets are intended to limit stretch fixations and give essential fortification/reinforcement.

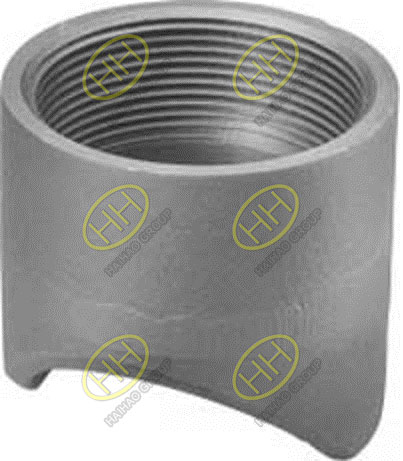

Coupolet or coupling outlet

Coupolet or coupling outlet

Coupolet(coupling outlet)

Coupolet pipe fittings are intended for use in flame/fire insurance sprinkler frameworks and other low weight pressure piping applications.Produced with NPT female threads for 300# administration and are UL Listed and F.M. affirmed.

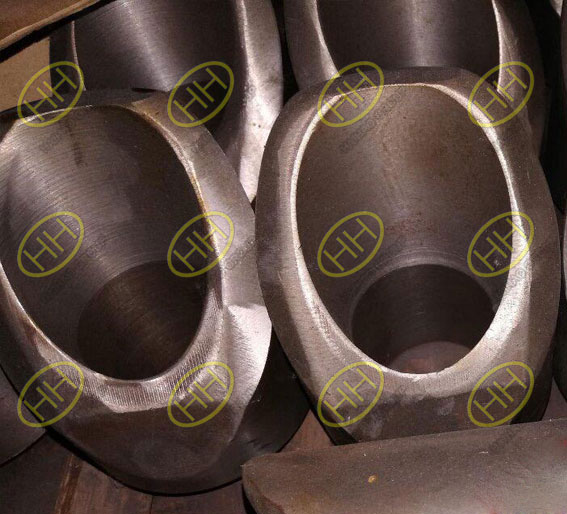

Brazolet brazo outlet

Brazolet brazo outlet

Brazolet(brazo outlet)

Brazolet is utilized generally abroad as of late,it is utilized to interface or connect the fortified fittings.It happens of conventional associating ways.The assortment of brazolet is made in phenomenal Forgings.It’s intended for use with KLM and IPS metal or copper tubing.It’s accessible with socket or threaded connections.

The advantages of outlet pipe fittings:

It has the advantages of safety and reliability,lower cost,simple construction,improved media flow path,series standardization,convenient design selection.It is widely used in high-pressure,high-temperature,large-diameter,and thick-walled pipelines,and has replaced the traditional way of branch pipe connection.

The branch connection fittings’ body adopts high-quality forging fittings,and the material is same as the pipeline,including carbon steel,alloy steel and stainless steel.

The connection between outlet fitting body and run pipe is welded,but there are three types of connection for outlet fittings body and branch pipe or other pipe(short tube,plugs etc.)instrument,valve connection.They are butt welding connections, socket welding connections,and threaded connections.

The common manufacturing execution standards for outlet fittings are MSS SP-97, GB/T19326.

Haihao Group can supply and manufacture all types outlet pipe fittings in different size,dimensions,standards,materials.We also can supply butt welding pipe fittings,forged pipe fittings,steel pipes and forged flanges.If you want to know more about our pipeline products,please email us:sales@haihaogroup.com
